Aqua Feed Machine
We specialize in manufacturing aqua feed machine and equipment. Whether you are raising fish or shrimp, and whether you need floating or sinking feed, we can provide you with a complete production line from raw material processing to finished product packaging, helping aquaculture farmers worldwide improve production efficiency and reduce feed production costs.
Types of Aqua Feed Machine
Floating Fish Feed Machine
The high-temperature extrusion process and double-layer modulator ensure the pellet density is lower than water, allowing them to float for a considerable time after being placed in water.
Sinking Fish Feed Machine
This aqua feed machine can use ring die pelleting, but many customers also choose extruders to produce high-density, compact aquatic feed pellets.
Crab Feed Machine
Crab species (such as mud crabs, swimming crabs, and river crabs) have high requirements for feed softness and palatability. Adding a higher proportion of water or oil during pelleting makes it very easy to digest.
Shrimp Feed Machine
Shrimp species (such as whiteleg shrimp, tiger prawn, freshwater shrimp, etc.) have small mouthparts, requiring extremely strict control over particle size and uniformity. This equipment is specifically designed for ultra-small particle feed.
Aqua Feed Pellet Processing Overview
Aqua feed pelleting mainly refers to the processing techniques used in the production of aquatic feed. Depending on the feed type, pellet structure, and buoyancy/sinking properties, aqua feed machine typically employs two core processing technologies: extrusion or pelleting. These two aquatic feed processing techniques will be described in detail below.
Different types of aqua feed making machine
We offer a variety of aqua feed machine: dry extruders, wet extruders, and twin-screw extruders (for producing various aquatic and pet feeds, with a very wide range of applications); we also provide professional shrimp feed pellet mills equipped with a three-layer modulator, which significantly improves the ripening and water resistance of shrimp feed, suitable for both sinking and slow-sinking feed production. Whether for individual aqua feed plant or large-scale aqua feed mill production, we can provide you with the most suitable solution.

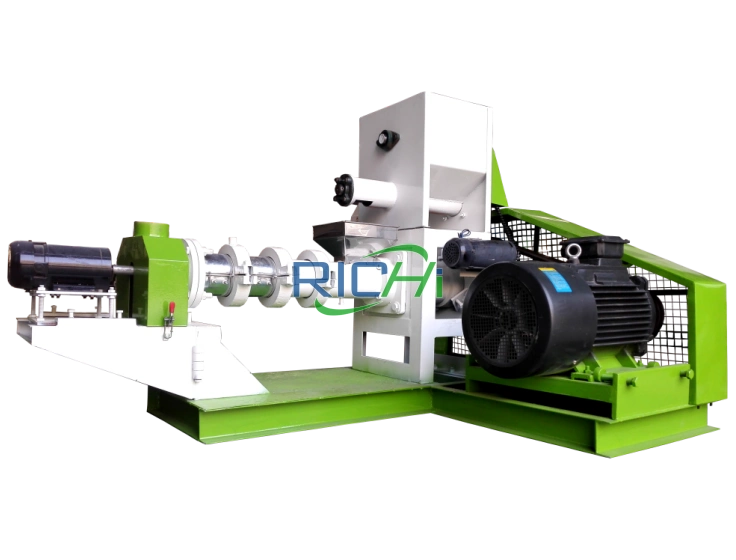

Dry Type Single Screw Aqua Feed Extruder
As a versatile aqua feed extruder machine, it uses mechanical friction during screw rotation to generate heat and pressure for puffing raw materials. Simple structure, easy to operate, ideal for small fish feed mill, research labs, and specialty feed production.
- Production Range: 0.2-1.0 tons/hour
- Main Motor Power: 37-90 kW
- Screw Diameter: 90-160 mm

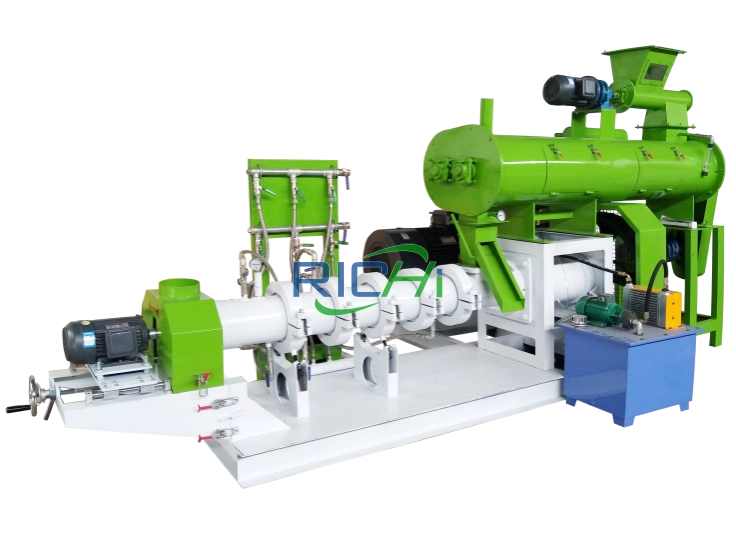

Wet Type Single Screw Aqua Feed Extruder
Features steam conditioning before extrusion for better starch gelatinization. Produces feed with higher digestibility that stays intact in water 12-24 hours. Perfect for premium fish and shrimp feed.
- Production Range: 0.5-1.0 tons/hour
- Main Motor Power: 37-75 kW
- Screw Diameter: 90-135 mm

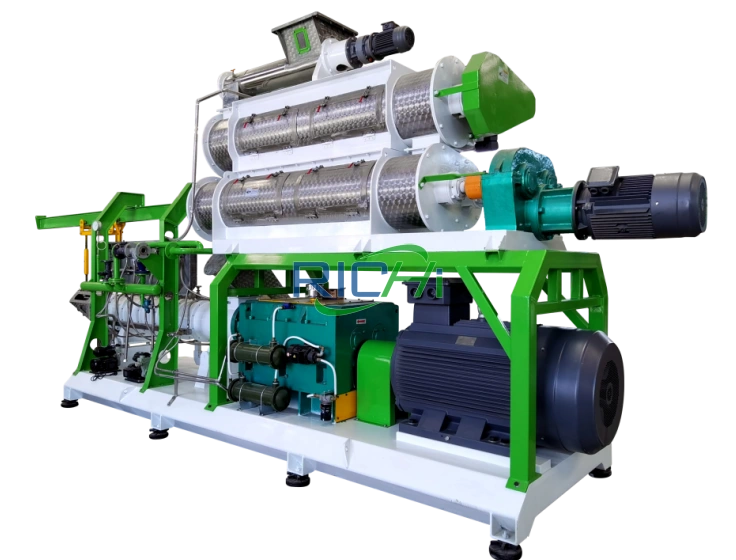

Twin Screw Aqua Feed Extruder Machine
Two meshing screws provide powerful mixing and extrusion with precise control over material maturation. Handles high-protein, high-fat formulas well. Widely used for fish, shrimp, and pet food production.
- Output Range: 0.5-12 tons/hour
- Main Motor Power: 55-355 kW
- Screw Diameter: 75-185 mm

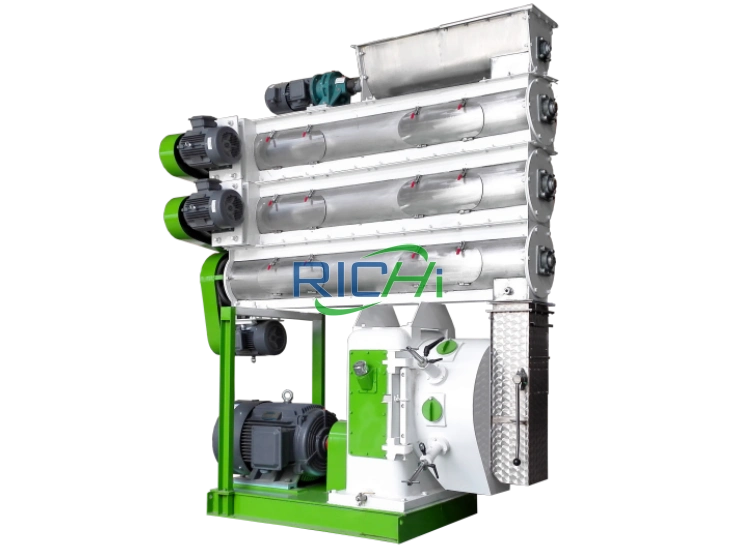

Three-layer Aqua feed pellet Making machine
High-end equipment with three-stage steam conditioning for full starch gelatinization. Produces highly water-resistant, stable pellets. Specifically designed for valuable shrimp species like Litopenaeus vannamei and Pacific white shrimp.
- Finished Pellet Diameter: Adjustable 2-12 mm (Common Shrimp Feed Size: 2-5 mm)
- Output Range: 1.0-40 tons/hour
- Main Motor Power: 22-315 kW
- Ring Die Inner Diameter: 250-768 mm
Complete solutions for Aqua Feed Machine
From aquaculture ponds to final aquatic feed product, we provide complete aqua feed production line solutions, from raw material processing to packaging. We design specialized configurations tailored to different aquatic species’ growth and feeding habits. Whatever aquatic animal feed pellets you need, our equipment can meet your requirements. We provide efficient, stable, economical turnkey projects to help you start production quickly and achieve ideal returns.
aquatic feed production line
This aquatic feed production line is specifically designed for comprehensive aquatic feed manufacturing, capable of producing both floating and sinking pellet feeds. It utilizes extrusion or pelleting technology as its core equipment, encompassing systems for crushing, mixing, conditioning, forming, drying, cooling, oiling, and packaging.
Suitable for various aquaculture animals such as fish, shrimp, and crabs. Production capacity ranges from 0.2 tons to 20 tons/hour, with flexible configuration options to meet diverse aquaculture needs.

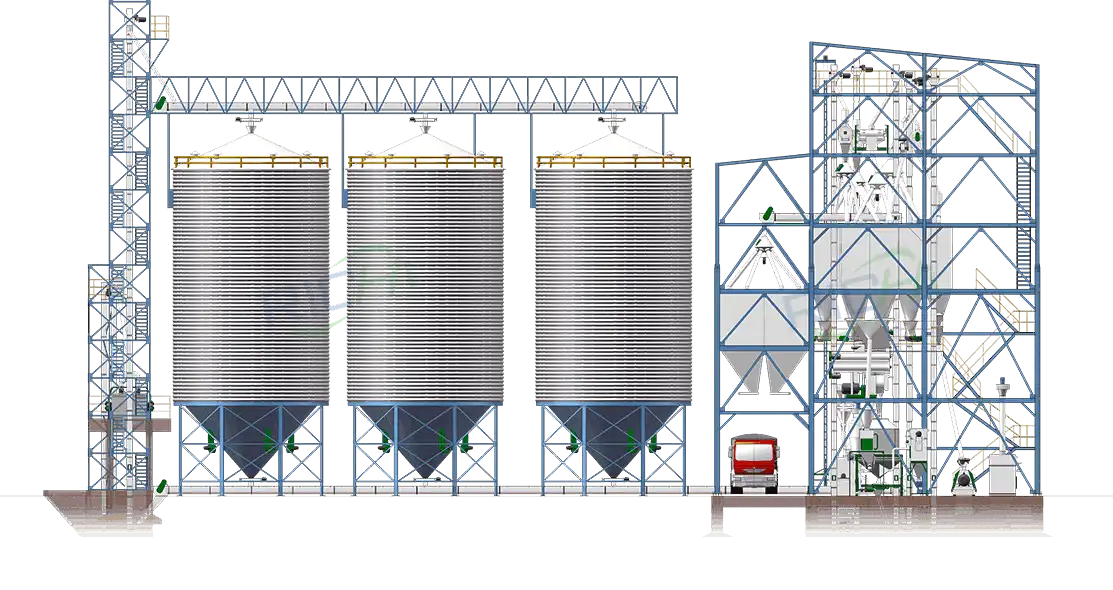

fish feed production line
This fish feed production line focuses on fish feed manufacturing, offering both floating feed and sinking pellet production capabilities. The floating feed line uses extrusion technology, suitable for mid-to-upper-level fish such as tilapia, bass, and salmon.
The sinking pellet production line utilizes a ring die aquatic feed pellet mill combined with steam conditioning technology. Customers in Europe and America prefer to use extruders to process aquatic feed, as extrusion produces higher quality pellets with greater water stability, making it widely recognized in the high-end fish feed market.
Crab Feed Production Line
This crab feed production line is specifically designed for crustaceans, using a special formula and process to produce high-protein, highly water-resistant hard pellet feed. Pellet diameter typically ranges from 1.5 to 4mm, covering juvenile to adult crab stages.
The aqua feed machine can also add special additives such as astaxanthin and calcium fortifiers to promote molting and shell hardening in crabs, increasing their commercial value.
Shrimp Feed Production Line
This shrimp feed production line is the most technically demanding aquatic feed production system, employing a three-layer conditioner + ring die pellet mill. Because shrimp have naturally small mouthparts, the pellet diameter typically needs to be controlled between 0.5 and 2 mm, much smaller than other aquaculture feed pellets.
This product is suitable for high-value shrimp farming, including Litopenaeus vannamei and Penaeus monodon, helping farmers reduce feed conversion ratios and improve farming efficiency.
Watch Our Aqua Feed Machine Project Videos
See how our aquaculture feed machinery performs in real-world production environments around the world. These project videos showcase actual installations, from aqua feed machine setup to full-scale operation, demonstrating the reliability and efficiency of our aquaculture feed production lines across different scales and regions. Our projects span multiple countries including Russia, Iran, Indonesia, and Japan, providing professional aquaculture feed production solutions to customers worldwide.
Aqua Feed Machine Projects Worldwide
With over 30 years of experience in manufacturing aqua feed machine, we have successfully delivered projects to more than 140 countries worldwide, accumulating rich practical experience and a strong reputation among our clients. These project case studies showcase our actual installation experiences in different regions, from equipment installation and commissioning to full-scale production, realistically presenting the operational status and production results of the production line.
Aquatic Feed Production Line in Kyrgyzstan
A shrimp feed production line customized for a client along the Norwegian coast, featuring a three-layer conditioner and ring die pellet mill configuration.

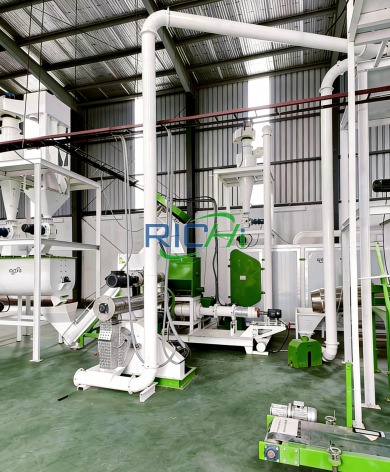

aqua Feed Plant in Kazakhstan
The Kazakhstani client primarily produces feed for common freshwater fish such as carp and crucian carp. The entire production line is simple to operate, requiring only two workers for daily production.

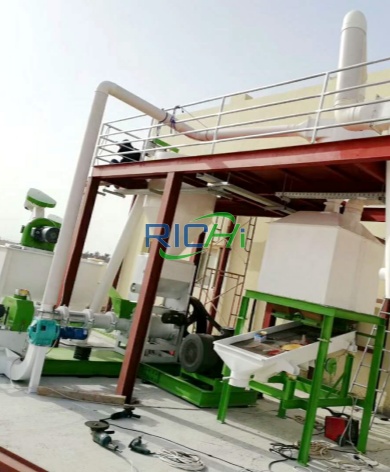

Fish Feed Production Line In Vietnam
This Vietnamese customer is mainly engaged in fish farming. We configured a dry single-screw extruder for him, and the fish feed produced can remain unchanged in water for a long time, which the customer is very satisfied with.

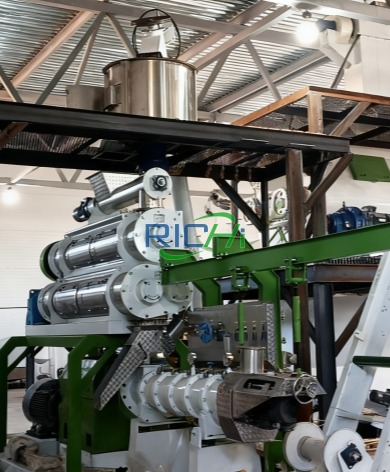

fish&crab Feed Production Line in Spain
An aquatic feed production line with a capacity of 1.5 tons per hour was designed for a client along the Spanish coast. After the project went into operation, the client repeatedly recommended this production line solution to other companies in the industry.
White Shrimp Feed Factory in Ecuador
The project has a designed production capacity of 5-8 tons/hour, with a total investment of approximately US$630,000, covering the entire process including equipment procurement, shipping, installation, commissioning, and personnel training.

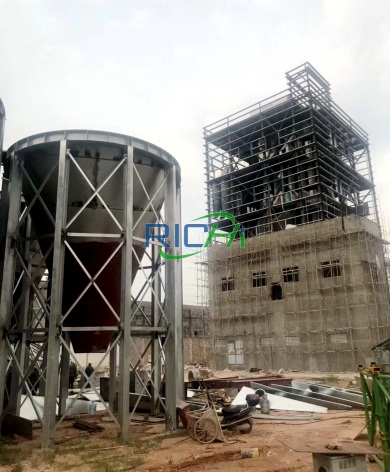

Floating Fish Feed Plant in Russia
A floating fish feed production line was built for a Russian client. Equipped with a twin-screw extruder, it primarily produces feed for freshwater fish such as tilapia and catfish.

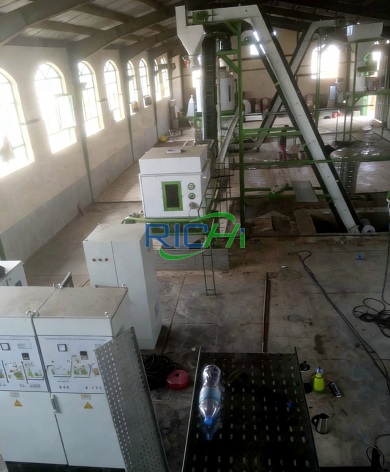

Aqua Feed Production Line In Indonesia
We provide our clients with a 6-ton/hour aquaculture feed production line, equipped with a wet extruder and a high-efficiency cooling system, capable of producing various sizes of floating and sinking feed.

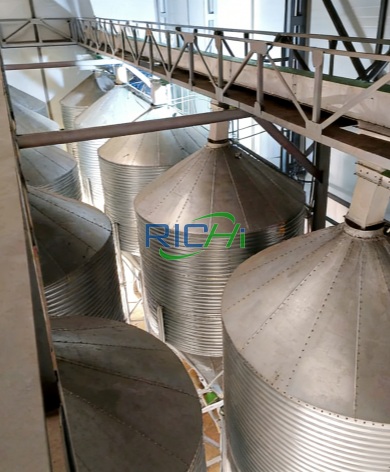

Aqua Feed Production Line In Chile
The line, designed for our clients, utilizes advanced extrusion technology and an energy-efficient drying system to produce high-oil-content floating pellets specifically formulated for cold-water salmon.
Customer feedback and positive reviews
★★★★★
“The aqua feed machine is of excellent quality, with almost no breakdowns in three years of operation. Now our salmon feed is very popular in the local market!”
James Anderson – Norway
★★★★★
“The twin-screw extruder’s production efficiency exceeded expectations, the feed extruded was excellent. Our tuna and grouper feed is currently in short supply, and we are considering adding a second production line.”
Michael Chen – Australia
★★★★★
“The three-layer conditioner is truly effective; the water resistance of our shrimp feed has doubled compared to before. Farmers who have purchased our shrimp feed have also reported faster shrimp production!”
Carlos Rodriguez – Chile
★★★★★
“The grinding system is powerful and processes fishmeal and seaweed powder very well. The mixing uniformity is also good, resulting in high feed quality consistency.”
Takeshi Yamamoto – Japan
★★★★★
“From consultation to installation and commissioning, the whole process went very smoothly. The equipment output meets the target, and the quality of marine fish feed is stable.”
Kim Min-ho – South Korea
★★★★★
“As a supplier in the European aquaculture feed market, they gave me a lot of professional advice. The aqua feed machine operation training was very detailed, and spare parts were supplied promptly.”
Lars Jensen – Denmark
★★★★★
“I am extremely satisfied with the fish feed production line I purchased from RICHI.The after-sales service is also very prompt; any problems are resolved immediately upon contact.”
Ahmed Al-Mansoori – UAE
★★★★★
“The water resistance test results for our shrimp feed production line were excellent, exceeding 4 hours. This helped us open up the high-end Mediterranean market!”
Javier Hernandez – Spain
Aqua Feed Production Line Process Flowchart

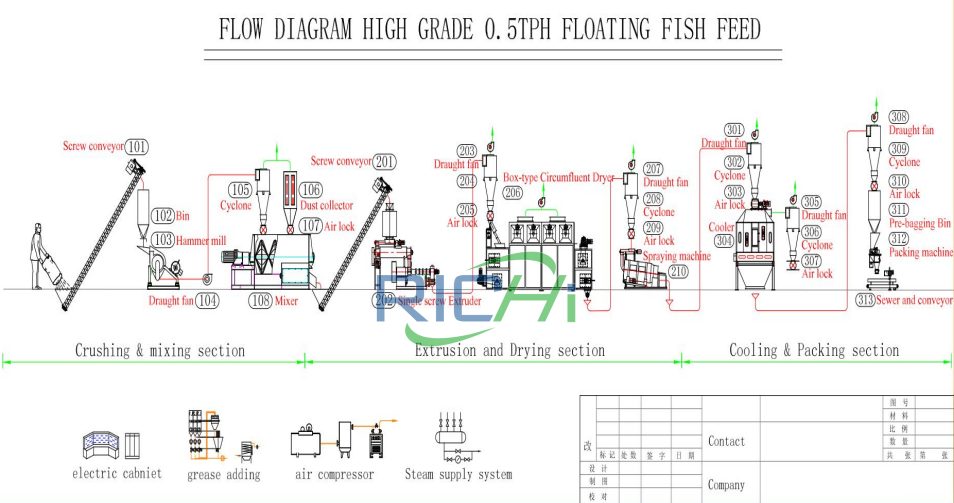

0.5T/H Small Aqua Feed Production Line
This small fish food processing equipment is suitable for family farms, small feed processing plants, or early-stage startups. It has a compact configuration, occupying 80-120 square meters of space, with low investment costs.
Semi-automatic operation requires 3-4 workers, with a daily output of 4-6 tons (8–12 hours). The aqua feed machine is simple, practical, and easy to maintain, suitable for producing a single type of feed to supply the surrounding market.

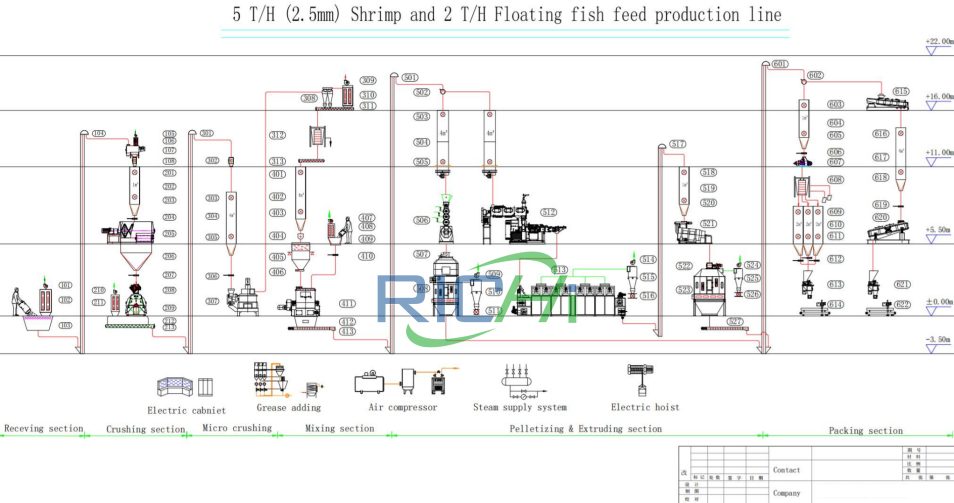

5T/H Shrimp Feed + 2T/H Floating Aqua Feed Production Line
We can design dual-line production processes for medium to large feed mills. The shrimp line uses three-layer conditioning for high water resistance, keeping pellets stable 2-4 hours. The fish food production line uses extrusion technology for floating feed.
Both lines operate independently with flexible capacity and feed type adjustments based on market demand.

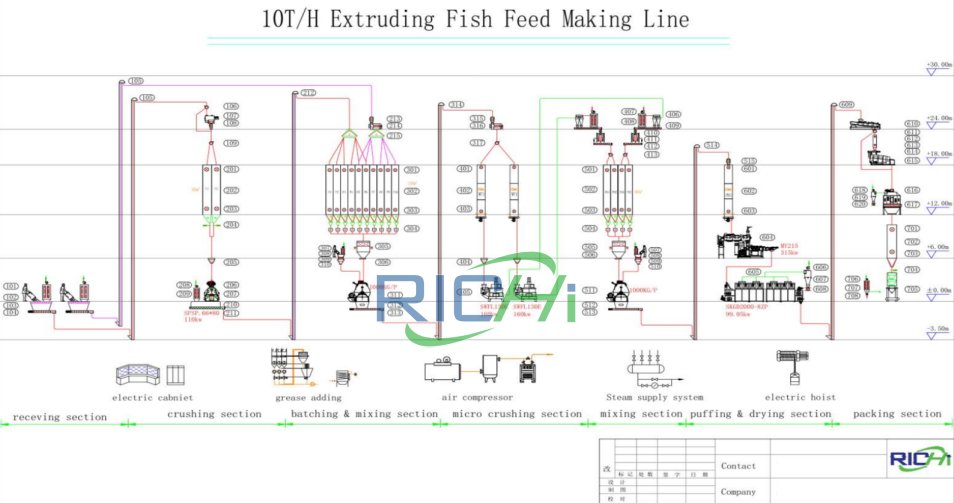

10T/H Fully Automated Aqua Feed Production Line
This fully automated aqua feed manufacturing process line uses PLC control and touch screen interface to achieve full automation from raw material input to finished product packaging.
A team of just 3 to 4 operators is sufficient to oversee daily operations, while achieving a daily throughput of 200 to 240 tons at optimized energy consumption levels. Built for high-volume, uninterrupted operation, it is well-suited to meeting the feed supply demands of regional aquaculture markets at scale.
Project Consulting & Solution Customization
Equipment Manufacturing & Quality Assurance
Installation, Commissioning, and Personnel Training
Long-Term Technical Support & Spare Parts Service
Ready to upgrade or build your aqua feed production line?
Complete aqua feed manufacturing process
Aquatic feed production is a systematic process, from raw material selection to finished product packaging, each step directly affecting the nutritional value of the feed. Below is a detailed introduction to the complete aqua feed manufacturing process, from raw material reception to finished product delivery, helping you fully understand how professional aquatic feed is manufactured.
Aquatic Feed Production Process Flow Chart
The aqua feed production process can be divided into three main stages: raw material pretreatment (cleaning and crushing), mixing and pelleting (ingredient formulation, mixing, conditioning, pelleting/expansion), and post-processing and packaging (drying, cooling, screening, and packaging). Each stage is interconnected, and a mistake in any link can affect the quality of the final product.
Receiving
Cleaning
Crushing
Batching
Mixing
AddOil
Extrude
Cooling
Drying
Screening
Spraying
Packing
Complete Aqua Feed Pellet Production Equipment Showcase
What equipment is needed to build an aqua feed mill? This is a question many first-time investors are concerned about. Below, we showcase a complete aquatic feed production line, with specialized machinery for each stage of production, from raw material receiving to finished product delivery.
Aqua Feed Crusher

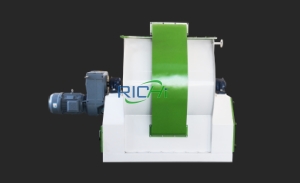

Aqua Feed Mixer

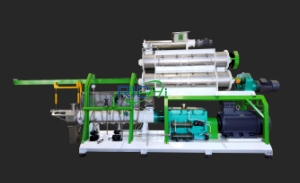

Aqua feed extruder
Feed Pellet Cooler

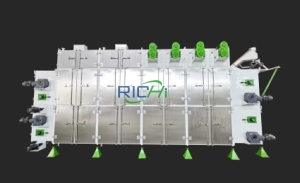

Aqua feed dryer
Receiving & Storage Silo

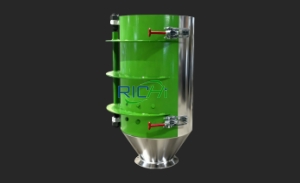

Permanent magnet drum

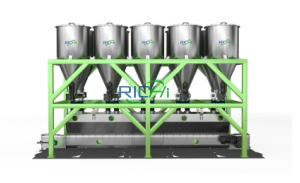

batching scale
Rotary Feed Screen

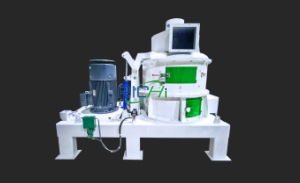

Ultra-fine pulverizer
Oil Addition Equipment
Vacuum coating equipment
Aqua Feed Crumbler
U-shaped scraper conveyor
Screw conveyor
feed packaging machine
If you are considering building a new aquatic feed production line or upgrading an existing one, feel free to contact us. Our team can help you evaluate your raw materials, capacity needs, and site conditions to recommend a practical and efficient solution.
Future Market Prospects for aquatic Feed
Asia
1
Asia is the world’s largest aquaculture market, accounting for over 90% of global aquaculture production. Aquaculture continues to grow rapidly, with the scale of high-value species such as shrimp, tilapia, and sea bass expanding.
Africa
2
Africa’s aqua feed machine industry is in its initial and rapid development stage, with farming scales expanding year by year in countries such as Nigeria, Egypt, Uganda, Kenya, and Ghana.
Europe
3
European aquaculture focuses on high-end fish such as salmon, trout, sea bass, and snapper, primarily concentrated in countries like Norway, Scotland, Spain, Greece, and Turkey.
North America
4
North American aquaculture is relatively concentrated in scale, with major farmed species including salmon, trout, catfish, and tilapia.
South America
5
South America is a significant emerging market for aquaculture globally, with salmon farming in Chile, shrimp farming in Ecuador, and tilapia farming in Brazil experiencing continuous expansion.
Oceania
6
Oceania, primarily comprised of Australia and New Zealand, sees salmon, tuna, pufferfish, and shrimp as its main aquaculture species.
Frequently Asked Questions
What is the difference between an aqua feed extruder and a regular aqua feed pellet mill?
+

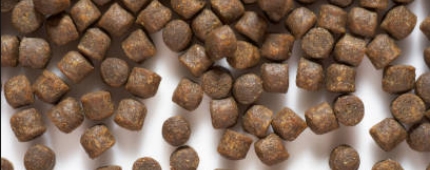

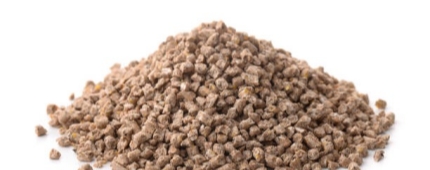

An aqua feed extruder machine uses high temperature and pressure to puff the feed, producing floating pellets. This is suitable for observing fish feeding behavior, reducing waste and water pollution. A regular aqua feed pellet mill, on the other hand, produces sinking pellets, which are denser and will sink to the bottom.
Extruded feed has higher digestibility and can withstand water for 12-24 hours, while sinking pellets typically withstand water for 2-4 hours. In terms of price, extruders require a higher initial investment than pellet mills, but produce feed with higher added value, making them suitable for the mid-to-high-end aquaculture market.
Should I choose a single-screw or twin-screw aquatic feed extruder?
+
Single-screw extruders feature a simple structure, lower cost, and a production capacity of 0.2–1 ton per hour, making them suitable for small-scale aquaculture feed production, pilot projects, and ornamental fish feed manufacturing as a practical aqua feed machine solution.
Twin-screw extruders are more expensive, but have a higher production capacity (0.5-12 tons/hour), better extrusion uniformity, and can process high-protein, high-fat formulations, making them suitable for commercial production of fish and shrimp feed and pet food.
If you are engaged in large-scale aquaculture or plan to sell feed externally, a twin-screw extruder is recommended; if it is for personal use and on a smaller scale, a single-screw extruder offers better value for money.
What types of feed can a fish feed extruder produce?
+
Fish feed extruders have a wide range of applications and can produce:
- Floating fish feed: Tilapia, grass carp, bass, salmon, etc.
- Shrimp feed: Through special molds and formulas, etc.
- Ornamental fish feed: Goldfish, koi, etc.
- Feed for turtles, tortoises, etc.
- Pet food: Cat food, dog food, etc.
By changing the mold with different aperture sizes (2-12mm), feeds suitable for aquatic species at different growth stages can be produced. Furthermore, by adjusting the formula and process parameters, the buoyancy, settling speed, and water resistance of the feed can be controlled to meet diverse aquaculture needs.
How to Choose a Reliable Aquatic Feed Production Line Supplier?
+
When selecting a supplier, consider these five aspects:
- Production Experience: At least 10 years of experience in feed machinery manufacturing, with a wealth of aquatic feed project case studies;
- Technical Strength: Independent R&D capabilities, able to customize solutions according to customer needs, and provide process technology guidance;
- Product Quality: Major components use high-quality materials (e.g., alloy steel for screws), and have quality certifications (ISO, CE, etc.);
- After-Sales Service: Provide installation and commissioning, personnel training, one-year warranty, lifetime technical support, and timely spare parts supply;
- Customer Reputation: Request to visit existing customer case studies to understand the actual operation of the equipment.
It is recommended to conduct on-site visits to the supplier’s factory to assess production capacity and management level. Price is not the only criterion; cost-effectiveness and long-term service guarantees are more important.
